C-Port®-II

CT-Port II

The C-Port®-II, our economical plastic version of an implantable port that is also suitable for high pressure infusion.

The C-Flow® chamber of the C-Port®-II differs from most conventional ports with a cylindrically shaped port chamber by the optimized inner chamber geometry and the baseline outlet. This results in improved flow dynamics and allows.


That this is also measurable can be seen here

Through the septum of the NuPort®, which is integrated in the C-Port®-II, it is still possible to see into the chamber during implantation and to monitor venting and flushing.

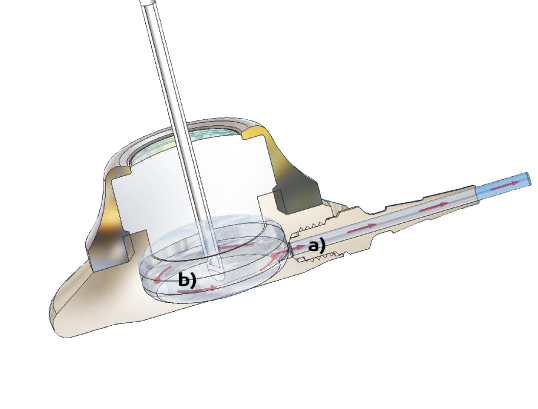

Port Chamber
Port Chamber
a) Clear septum and base-line outlet simplifies debubbling of the port minimizing the risk of an air embolus.
b) The C-Flow reservoir improves fluid dynamics reducing the risk of premature occlusion.
Anschluss
Connection
The ergonomic locking mechanism provides audible and tactile features and responses during connection. These two features provide the surgeon with added security to ensure secure attachment of the catheter to the port.

The advantages at a glance

  • reduced risk of occlusion and infection
  • improved flushing efficiency
  • low maintenance required
  • facilitates blunt preparation of the port pocket
  • MRI compatible up to 3-Tesla
  • many catheter variants
plus simplified
  • blood product administration
  • blood collection
  • parenteral nutrition
  • high viscosity medications

Specifications

C-Port®-II Basic System

Single lumen venous system for
Implantation by means of venous cutdown

Content:
C-Port®-II, catheter, catheter fixation,
Huber cannula straight, irrigation cannula,
vein lifter, 10 ml syringe

Spezifikationen
C-Port®-II Complete System
with percutaneous introducer set

Single lumen venous system for
Implantation by means of percutaneous technique

Content:
C-Port®-II Basic system, introducer
(Seldinger) needle,
Split-Sheath with dilator,
Guide wire with insertion aid, tunneler

Spezifikationen

Technical Data

Material
Port Plastic
Catheter Connector Titanium
Septum Silicone
Volume
Total volume ~ 0.5ml
Weight
Total weight 6.3g
All catheters with rounded tip and length markings at 1 cm intervals from 1 cm to 30 cm, radiopaque.

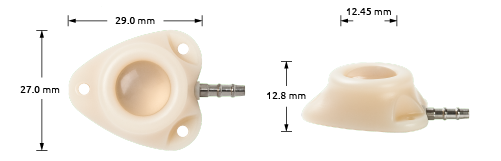

Masse C-Port II

Ordering Information

Catheter Größe O.D. I.D. Length Ref. without Introducer Set      Ref. with Introducer
Set
Polyurethane 6.6F 2.20mm 1.20mm 70cm KP-066CP KP-066IP
Polyurethane 7.5F 2.50mm 1.15mm 50 cm KP-075CP KP-075IS
Silastic®-Silicone 8.0F 2.67mm 1.40mm 50cm KP-008CS KP-008IS
Polyurethane 9.0F 3.00mm 1.60mm 50cm KP-009CP KP-009IP
Silastic®-Silicone 9.6F 3.18mm 1.58mm 50cm KP-096CS KP-096IS
The measurable difference

In the FDA guidelines for the approval of ports, a defined measurement setup* is described, the so-called "Clearing Index". This indicates how much flushing volume is required to flush out (clean) a port chamber without leaving any residue. This test has also been adopted in the ISO standard for port catheter systems 10555-6**.

This can be used to illustrate the measurable differences between different port designs.

In a study by Norfolk Medical Inc., USA ***, the respective flushing characteristics were compared in a measurement of four different port systems. The difference between the system with a conventional cylindrical port chamber and central catheter outlet and our NuPort® chamber geometry with tangentially positioned catheter outlet is clear.

Almost 40% more flushing volume is required with a conventional port for residue-free flushing.

The chamber geometry therefore makes the decisive difference in the flushing (cleaning) of port systems. Under certain circumstances, this is precisely the difference that prevents occlusion of the port system.

Port
NuPort® chamber, significantly improved flushing efficiency
Port
C-Port® chamber, improved flushing efficiency
Port
Conventional cylindrical port chamber, inferior flushing efficiency

Average values chamber flushing volume*

Port Port Chamber Flushing volume difference in percent
NuPort®-CT Elliptical
tangential outlet
Reference value
C-Port®-CT Elliptical
central baseline outlet
+ 6.9%
Conventional Port A
High Pressure Injection
Cylindrical
central outlet
+ 23.3%
Conventional Port B
Standard
Cylindrical
central outlet
+ 39.5%

* FDA "Guidance on 510(k) Submissions for Implanted Infusion Ports".
** DIN EN ISO 10555-6, Annex B "Determination of the flushing volume (clearing index)".
*** Measured values determined by Norfolk Medical, Inc. USA with reference to FDA "Guidance on 510(k) Submissions for Implanted Infusion Ports" and DIN EN ISO 10555-6
